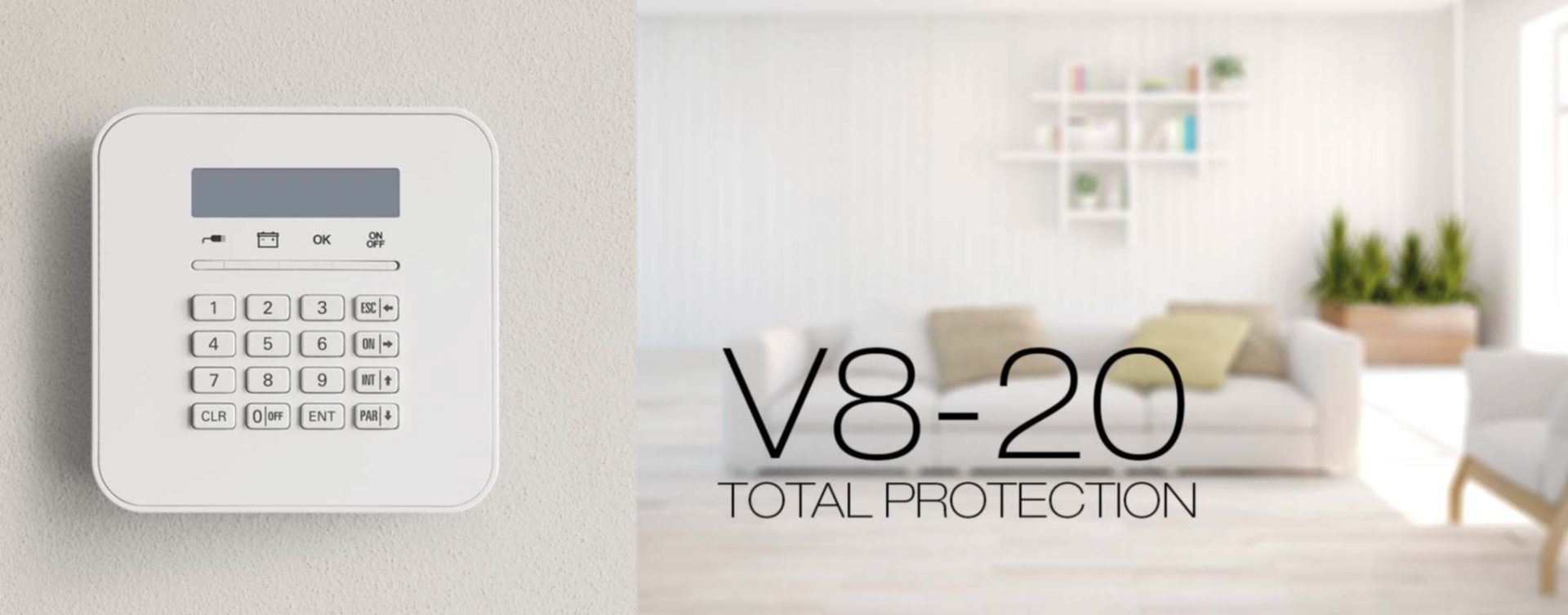

Control Panel V8-20

_

Easy installation, intuitive setting and usage, flexible performance: Venitem control panels allow customized security solutions.

_

TECHNICAL INFORMATION

  • 8 basic zones

  • Possibility to expand the basic zones up to 20, in wired or wireless mode (868 Mhz)

  • 2 dedicated outputs for outdoor and indoor sounder

  • 2 solid-state relay outputs (max current 100 mA), freely programmable

  • Possibility to expand the basic outputs up to max 8 using a 2-relay accessory or a 4-relay BUS expansion

  • Integrated GSM (standard feature)

  • Possibility to add a PSTN dialer

  • 13.8 Vdc 1.3 A power supply able to work even in very humid environments thanks to the special treatment in vacuum resin

  • Pre-punching to seat all Venitem boards

  • Spirit level (standard feature)



ALARM SYSTEM MANAGEMENT

The alarm control panel can be managed using the dedicated APP as well as through vocal telemanagement and SMS. Arming and disarming (even of parts of the alarm system) and managing the 8 outputs becomes easy and fast.

_

TWO-WAY 868 MHZ WIRELESS EXPANSION

The wireless expansion module allows the user to set the control panel according to his needs, avoiding building modifications. V8-20 wireless system is based on two-way communication between devices and direct sequence spread spectrum (DSSS), leading communication to uncommon distances.

_

_

THE KEYPADS

tastiere_comp1

Keypad with anomaly signaling LED and ON/OFF signaling LED. Elegant design, high quality painting and possibility to choose among different colours.

_

THE PROXIMITY TAGS

inser_comp1

Ergonomic and functional proximity tags to choose the working mode of your alarm system; available in different colours.

_

THE NEW XL CASE

The new “XL” box is able to house a bigger battery (17 Ah) and a CCTV power supply: CCTV and intrusion alarm systems are integrated in the same product.

xl

CERTIFICATIONS

GSM compliance: EN 60950-1, ETSI EN 301 489-1, ETSI EN 301 489-7, ETSI EN 305 511

PSTN compliance: EN 60950-1

Grade: 1
