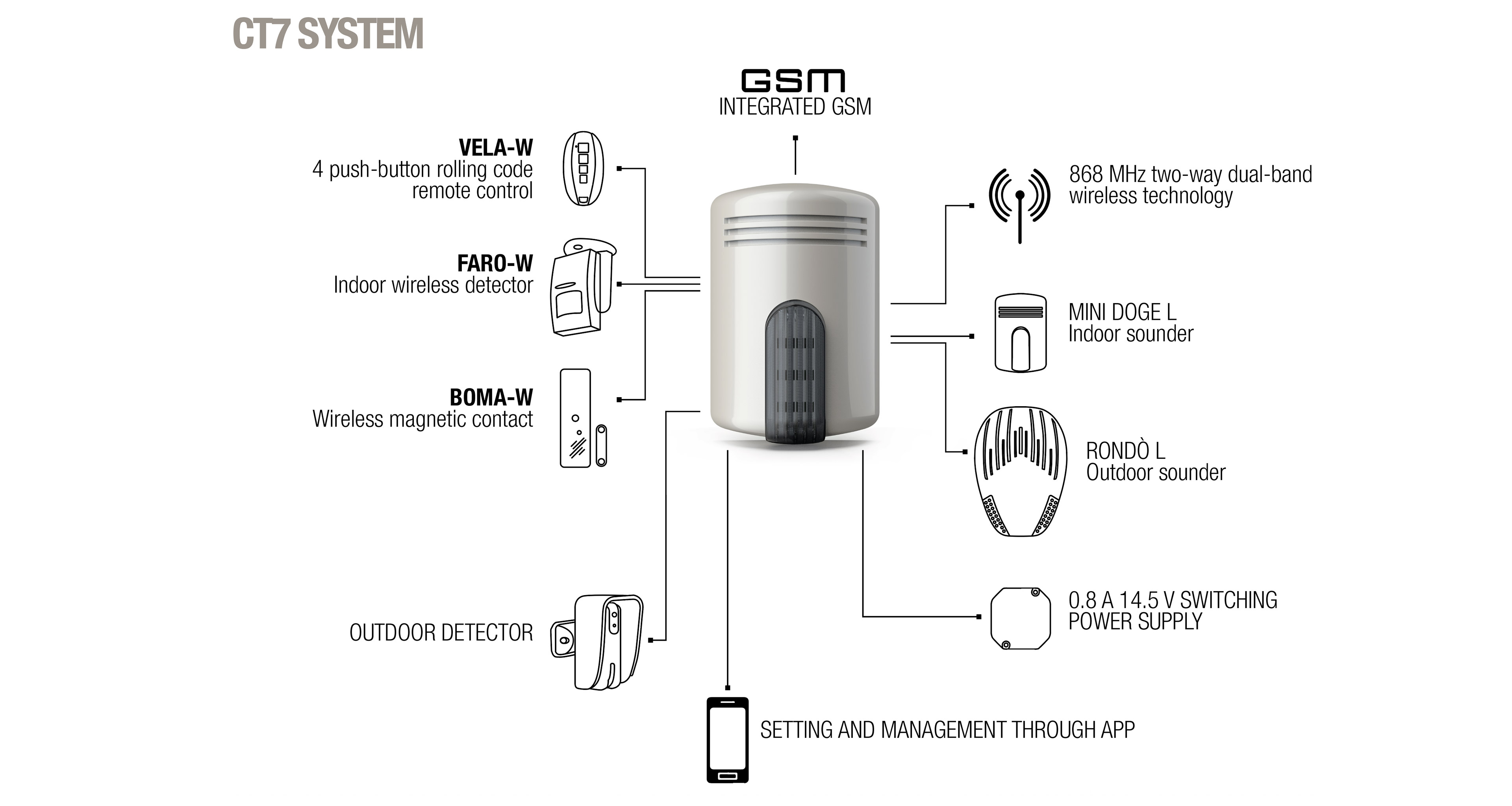

CT7 System

CT7 is a sounder integrating functionalities of a wireless alarm control panel with GSM. CT7 is not only easy to install and extremely user-friendly but also perfectly able to adapt to any kind of small-to-medium size alarm systems. 7 zones (5 wireless and 2 hardwired), together with the 24h tamper zone meet the most modern security needs.  CT7 has been conceived to be functional and reliable. It is able to manage up to 6 two-way remote controls featuring optical-acoustic feedback and modern design. All wireless devices of CT7 system are two-way and use random encrypted transmissions on two frequencies of 868 MHz band. The GSM part manages up to 6 telephone numbers and notifies any alarm, anomaly and control events via SMS. The flashing unit of the sounder also provides communication regarding alarms and anomalies through its RGBW technology ensuring rapid and clear discrimination of the event.

The sounder is equipped with an 800mA power supply unit for battery recharge and supply of connected devices, a relay output dedicated to an outdoor and an indoor sounder and 4 preset digital outputs. CT7 is the new Venitem-branded sounder-alarm panel conceived to enable a fast installation and an easy system management, either via SMS or through the dedicated multilingual APP.

_

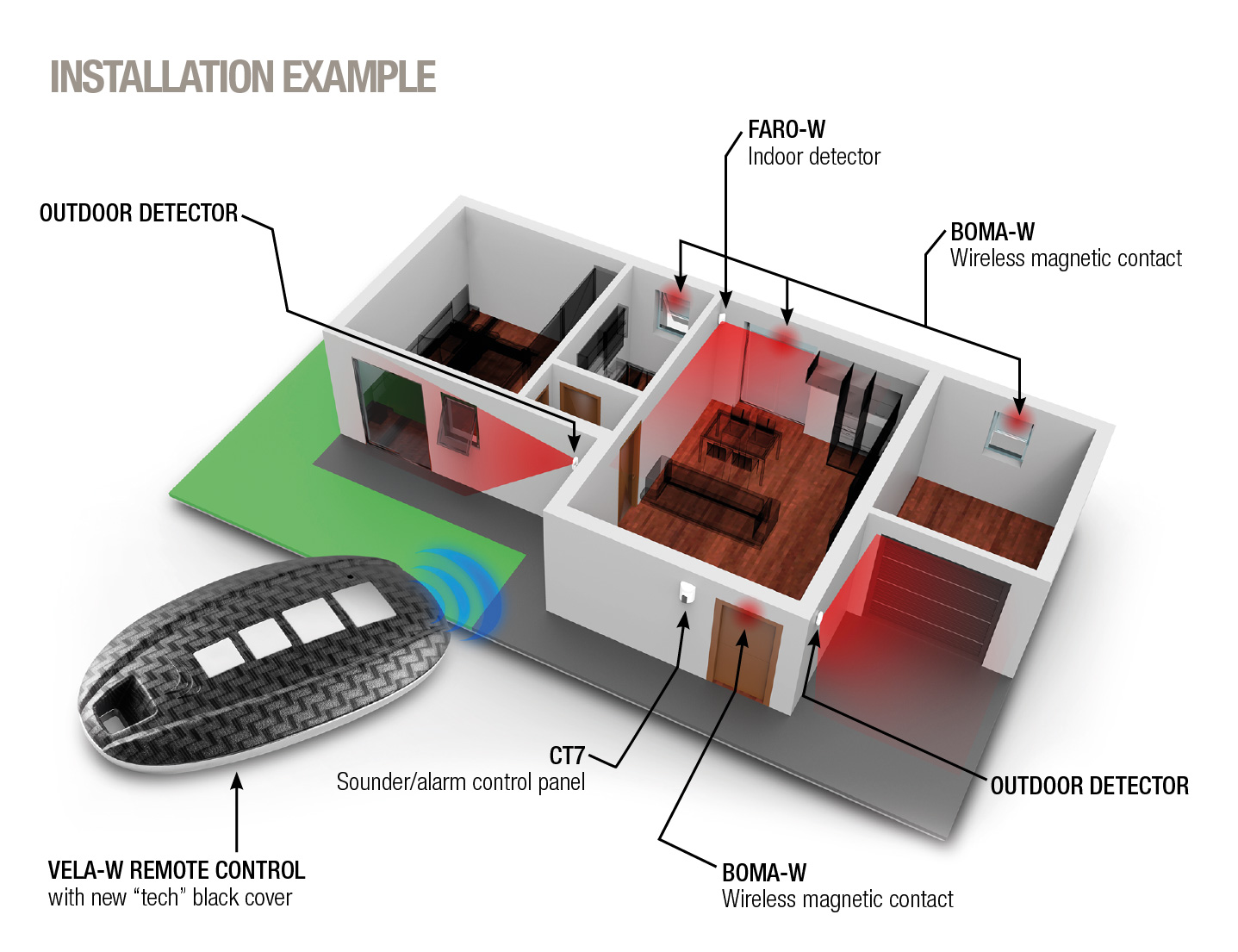

INSTALLATION EXAMPLE

_

FEATURES

  • 5 wireless zones

  • 868 MHz two-way dual-band wireless technology

  • 2 hardwired zones and 1 on-board tamper zone

  • Anti-opening and anti-removal tamper

  • Anti-foam and anti-shock device

  • 1 partition

  • 230Vac 0.8A 14.5V switching power supply

  • 2.1Ah or 1.2Ah battery

  • LED multicolour flashing unit (RGBW)
  • On-board GSM up to 6 telephone numbers

  • Notices and feedbacks via SMS

  • Up to 6 two-way remote controls with optical and acoustic feedback

  • Management through remote control and the dedicated App

  • Setting via the dedicated App for Android and iOS

  • Adjustable entry/exit time

  • 1 sounder-dedicated output

  • 3 outputs for system status, anomalies and buzzer respectively

  •  1 output for management through remote controls

_

_

VELA-W REMOTE CONTROL

radiocomandoct7

The two-way remote control of CT7 system featuring modern elegant design combined with 4 user-friendly and intuitive preset buttons.  The device is smart and functional thanks to the optical-acoustic feedback confirming CT7 proper command reception. The transmission system of the remote control is conceived to avoid decoding of the information sent and to ensure high immunity against interference and tampering attempts while working consumption is optimized for battery to last 2 years on average. The exclusive tech-black colour of the remote control gives an extra touch of glam and makes it the perfect complement to your CT7-alarm system.

_

_

FARO-W WIRELESS INDOOR DETECTOR

sensorect7

Infrared detector of CT7 system featuring a supervised two-way communication technology combined with a versatile linear design. The device emits a detection beam of 90° x 12m and its sensitivity can be adjusted to adapt it to all installation situations. The detector is also equipped with two LEDs of RED and GREEN colour respectively which can be used in the initial setting/testing phase to adjust the device in the best way according to the system requirements. The transmission system exploits a random encryption technology to avoid decoding of the information sent and ensure high immunity against interference and tampering attempts. The supervision signal sent on periodical basis to the sounder-alarm panel enables a steady monitoring activity on the detector.

Working consumption of the device is optimized for battery to last 4 years on average, thus reducing the maintenance service need. The detector is also provided with an intelligent battery monitoring system to communicate CT7 when battery discharge level is reached and battery replacement is needed.

_

_

BOMA-W WIRELESS MAGNETIC CONTACT

contattoct7

Wireless magnetic contact of CT7 system featuring a supervised two-way communication technology. The device is provided with a magnetic reed and with an additional input to connect a NC/fast contact that CT7 manages as one unique zone. The transmission system of the device exploits a random encryption technology to avoid decoding of the information sent and ensure high immunity against interference and tampering attempts. The supervision signal sent on periodical basis to the sounder-alarm panel enables a steady monitoring activity on the device. Magnetic contact working consumption is optimized for battery to last 4 years on average, thus reducing the maintenance service need. The wireless contact is also provided with an intelligent battery monitoring system to communicate CT7 when discharge level is reached and battery replacement is needed.

_

_

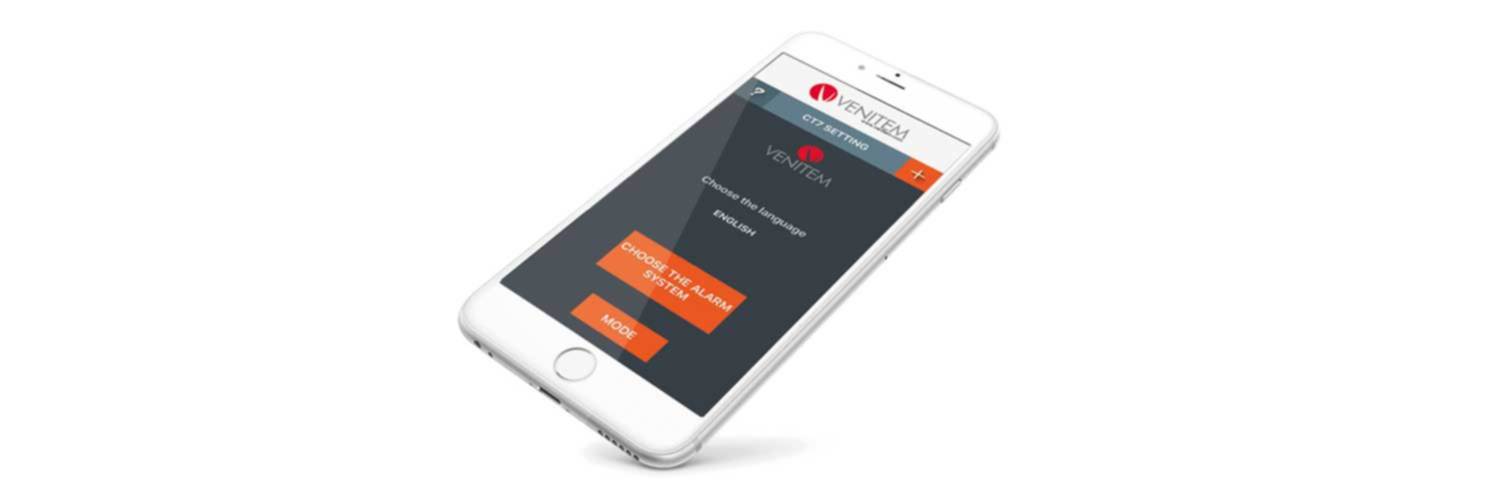

DEDICATED APP FOR SETTING AND MANAGEMENT

CT7 is the new Venitem-branded system enabling total programming and management through the dedicated multilingual APP, available for both Android and iOS.

The intuitive easy-to-use APP developed by Venitem allows the whole system to be managed in a few steps, directly through your smartphone. The integrated feedback functions make it simple to stay always informed about the status of the system and to monitor it continuously, even at distance.
