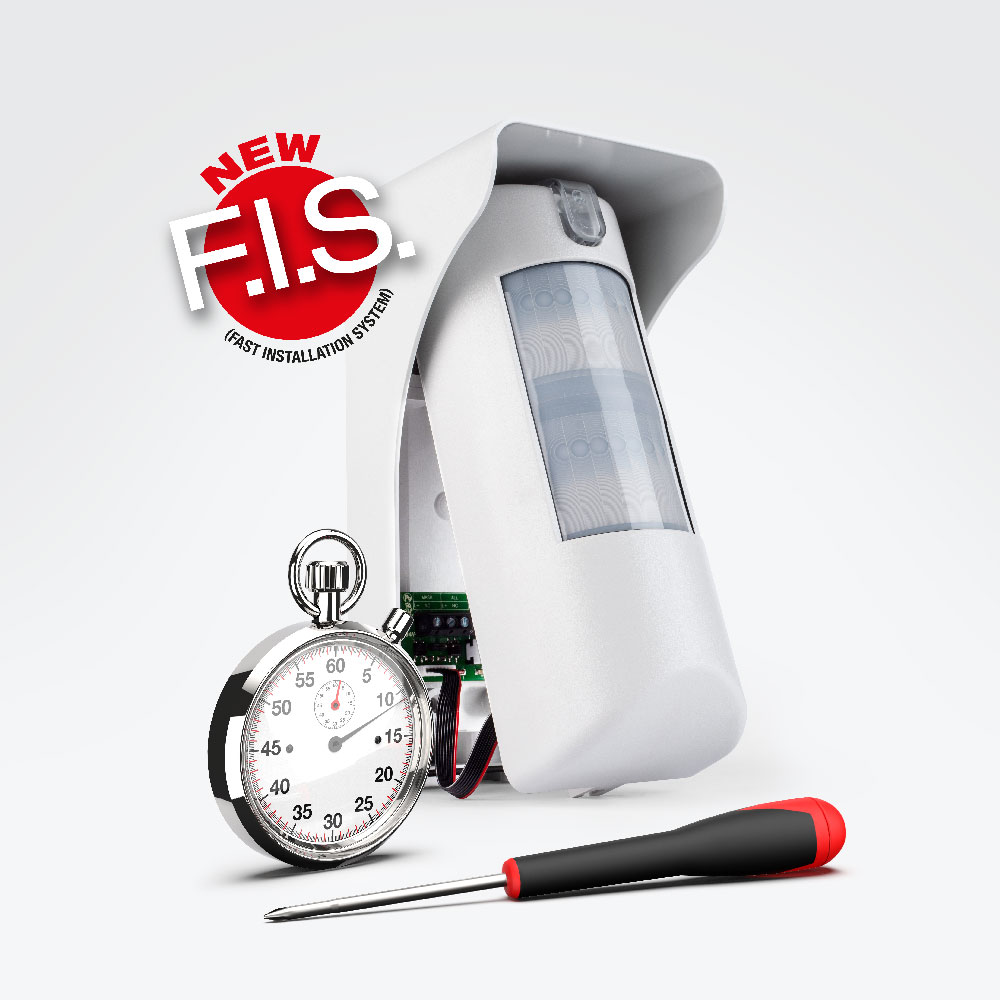

Faro Tribalance | TRIPLE TECHNOLOGY VOLUMETRIC DETECTOR FOR OUTDOOR APPLICATION



Volumetric detector for outdoors, triple technology with anti-masking and anti-approaching, IP65. Temperature compensation and pet immunity.

Partialising lenses for the beams and 45° adapter included.



The IP65 outdoor volumetric detector with triple technology. Featuring anti-approaching and anti-masking systems, it ensures a perfect installation in record time!



MAIN FEATURES

  • TRIPLE TECHNOLOGY – Triple technology detector with 2 infrared and 1 microwave sections

  • INSTALLATION HEIGHT – Installation height between:  0.80 – 1.20 m (version 8.12) – 2.10 – 2.30 m (version 21.23)

  • METERS RANGE – The detector has an operating range of: 12 m (version 8.12) – 10 m (version 21.23)

  • INFRARED ANTIMASK (AM + DISTANCE) – It detects any masking attempt in the immediate proximity of the detector via active LEDs technology

  • ANTI-APPROACH SYSTEM – It allows to combine the AM with an attempt of approaching the detector

  • HIGH RESOLUTION TEMPERATURE COMPENSATION – HW and SW integration for optimization of detection according to temperature

  • PET IMMUNITY THREE BALANCE – Immunity to animals with THREE BALANCE logic

  • HARD PLASTIC – Container made of high quality plastic designed for outdoor use and UV stabilized

  • FAST MOUNTING – Anchor brackets for secure and easy fixing of the detector

  • IP GRADE – Protection degree of the enclosure: IP65

  • PROTECTED ELECTRONIC BOARD – Protected electronic board to guarantee the effectiveness of the detector over time

  • EOL RESISTORS – Selectable end of line resistors



STANDARD ACCESSORIES

  • 45° adapter: bracket for angle mounting
  • Partializers for lenses
