Relay and multi-function boards

Up to 9 different settings with different timing options in one product. Venitem has been able to obtain this flexibility and operating capability through its relay boards. Many functions for intrusion, CCTV and home automation, come together with the DIN BOX standard plastic box, allowing board installation in switchboards and systems having great quantities of cables. Moreover, the useful lateral snap-fit hook of the DIN BOX enables different modules to be easily mounted in series.

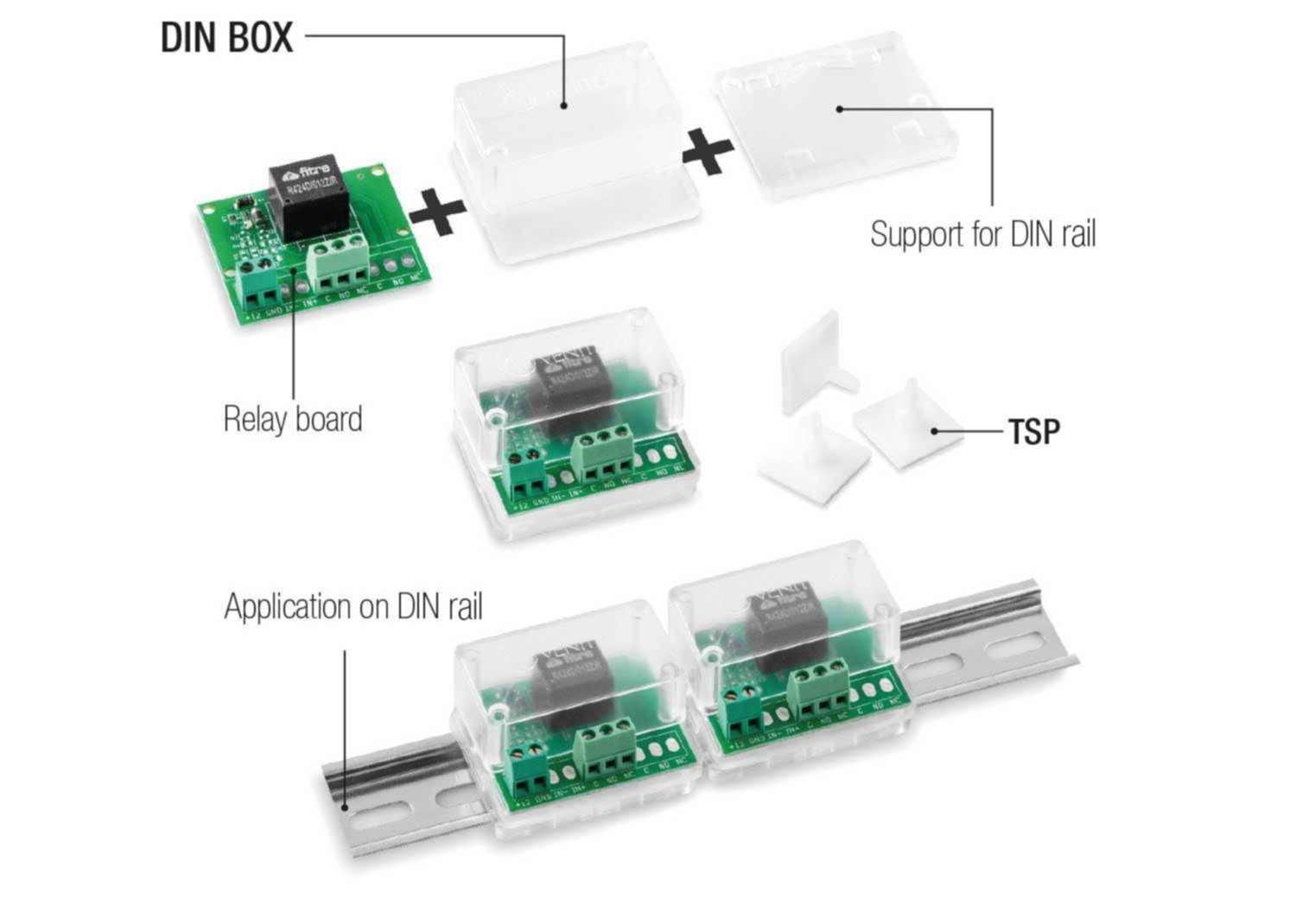

DIN BOX

Protective plastic box with mounting option on DIN rail – (to be used with RVF – RA – RA/T – RA/2S -RN 12/24 – MTT – MCX – MCV)

_





RELAY BOARDS

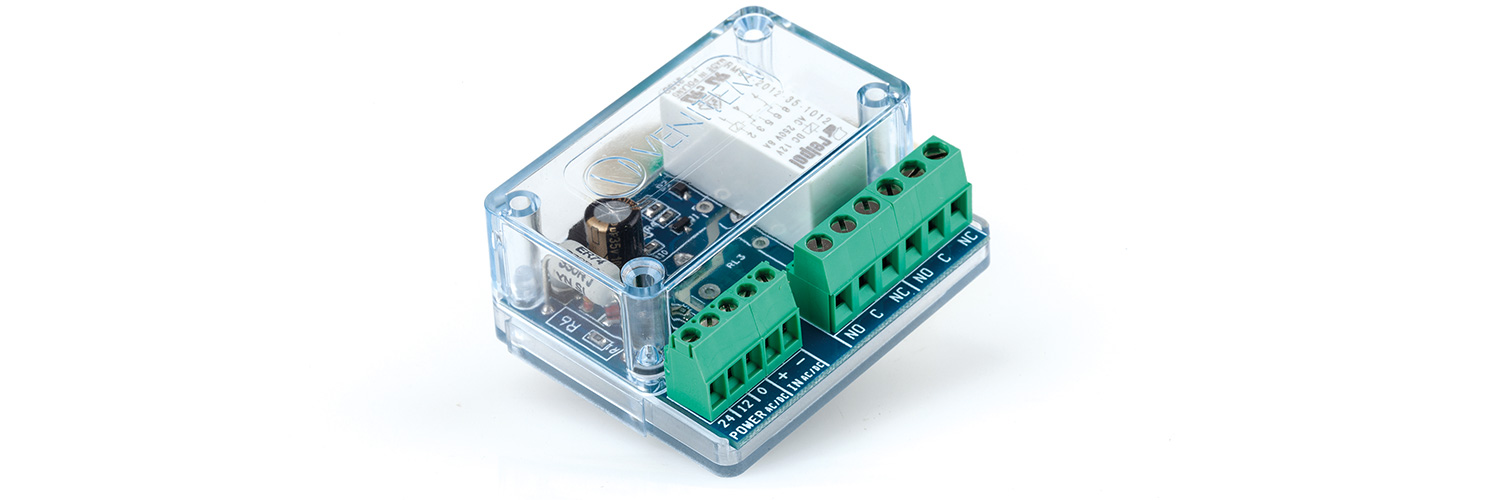

RVF RELAY BOARD (FULL RELAY)

Interface board with 12/24 Vac/Vdc power supply, maximum consumption 40 mA at 24 V and opto-isolated input from 3 to 30 Vac/Vdc maximum 10mA. DPDT (Double Pole, Double Throw) output with dry contact with maximum 8 A 250 Vac.

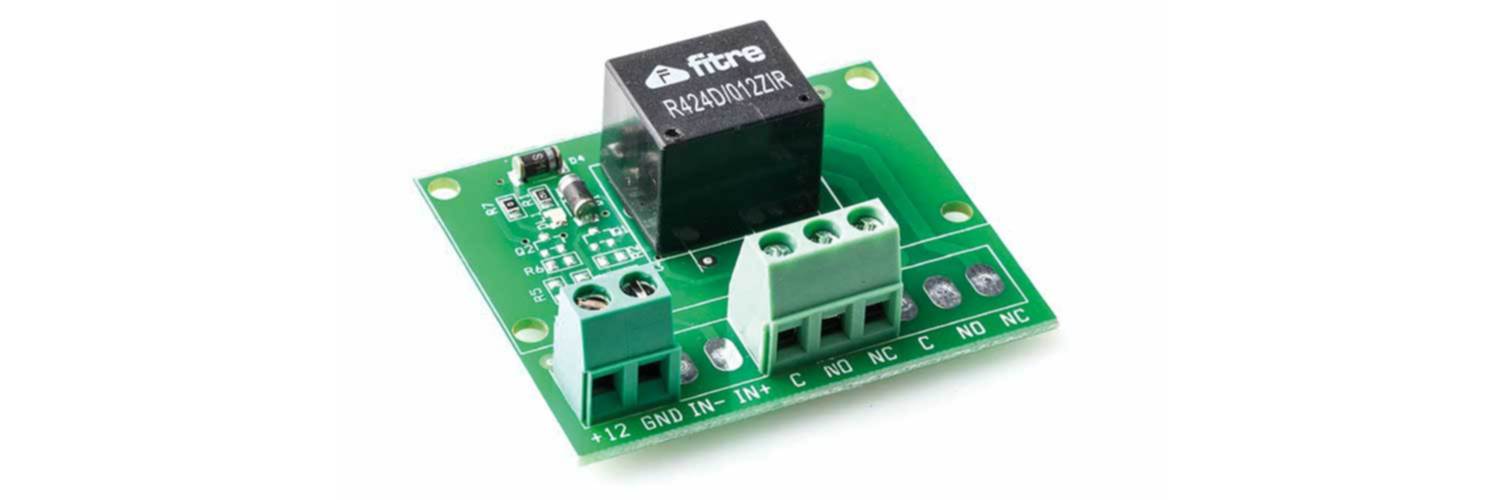

RA RELAY BOARD

ra

Module for open collector with relay output. Interface board with a 35 mA input and a 3 A relay output.


_

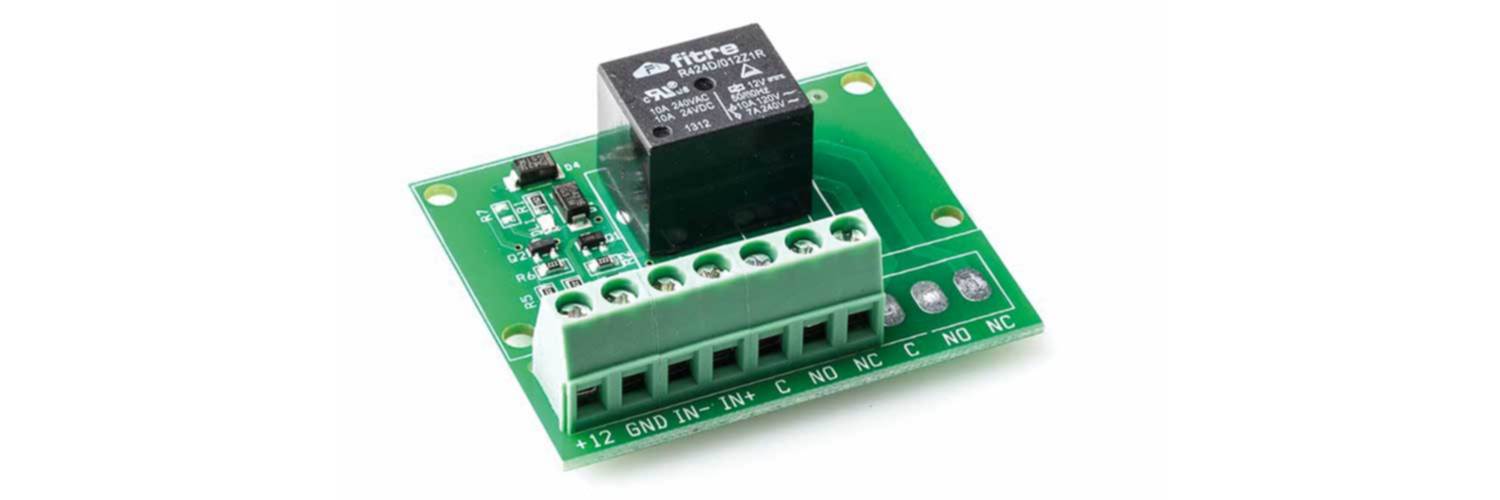

RA/T RELAY BOARD

rat

Low consumption module for open collector with relay output. Interface board with a 1mA input and a 3 A relay output.


_

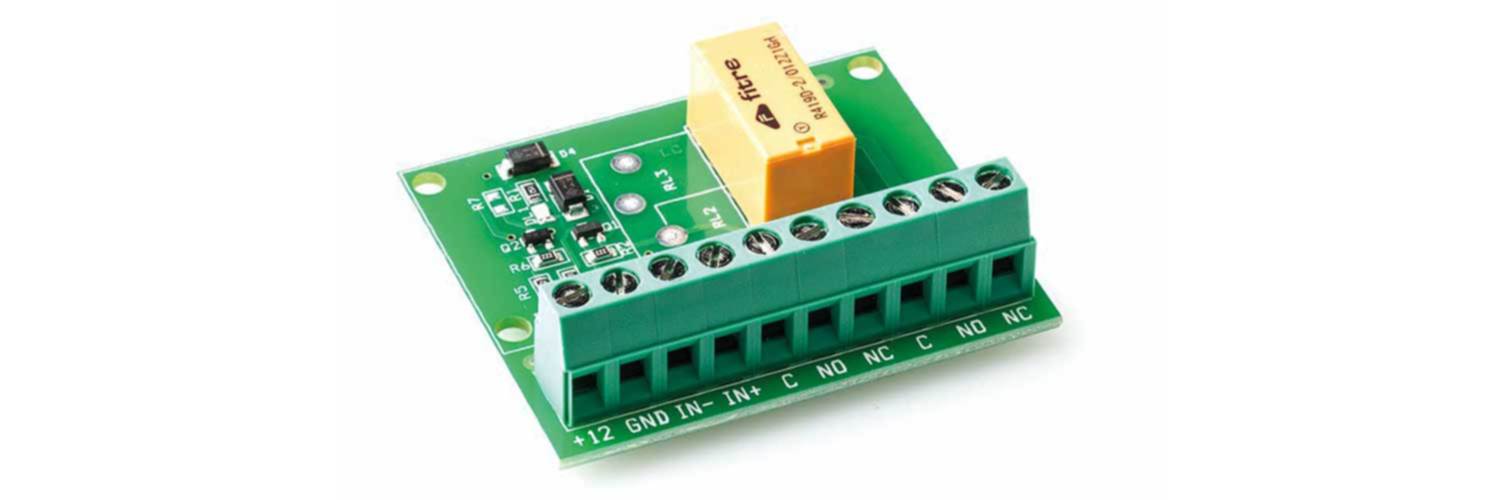

RA/2S RELAY BOARD

ra2s

Low consumption module for open collector with two opto-isolated outputs. Interface board with a 1mA input and two 1 A.


_

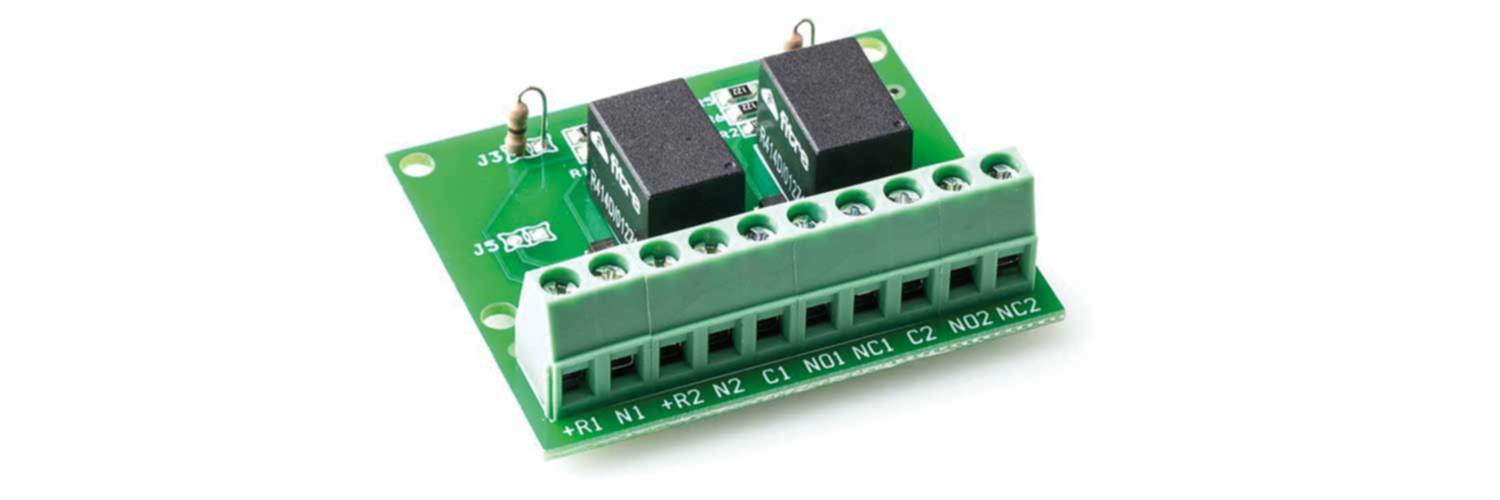

RN 12/24 RELAY BOARD

rn1224

Module for open collector with two relay inputs and two relay outputs. Interface board with two 25 mA inputs two outputs with two 1 A relays.




MULTI-FUNCTION BOARDS

CTT/R MULTI-FUNCTION BOARD

cttr

Circuit for mains failure and battery anomaly signaling – opto-isolated input – three 1 A output relays.


_

MTT MULTI-FUNCTION BOARD

mtt

Multi-function cicrcuit for all timings –  two 1mA inputs – a 1 A relay output – a O.C. output.


_

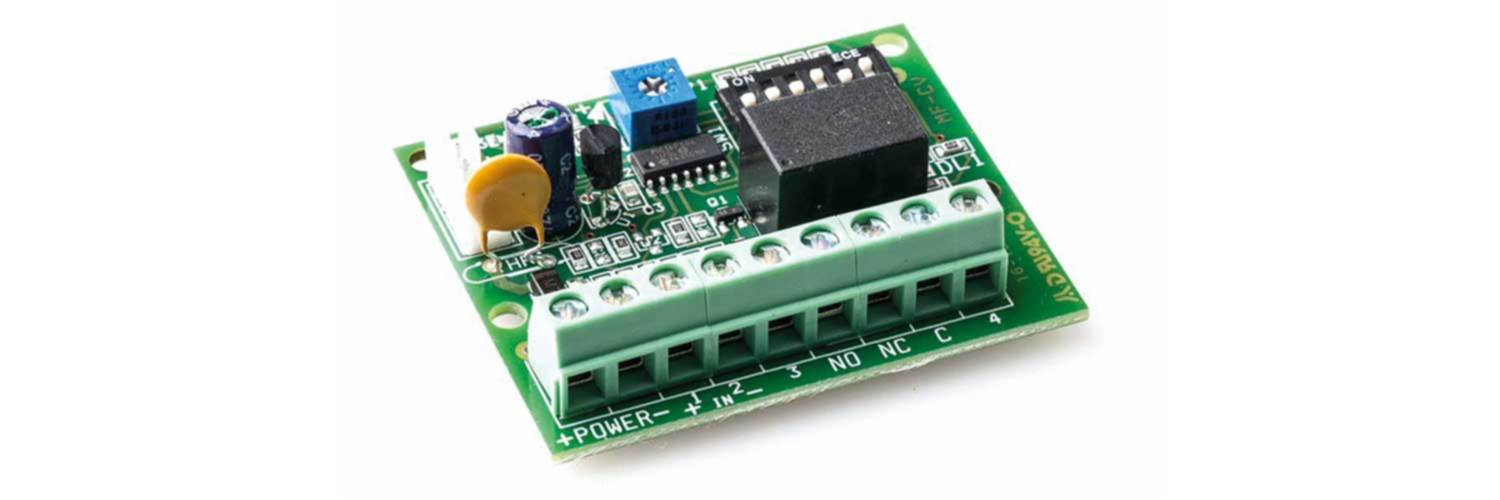

MCX MULTI-FUNCTION BOARD

mcx

Multi-function circuit for rolling-shutter contacts, inertial and vibration sensors – a 1mA input – a 1 A relay board – a O.C. output.


_

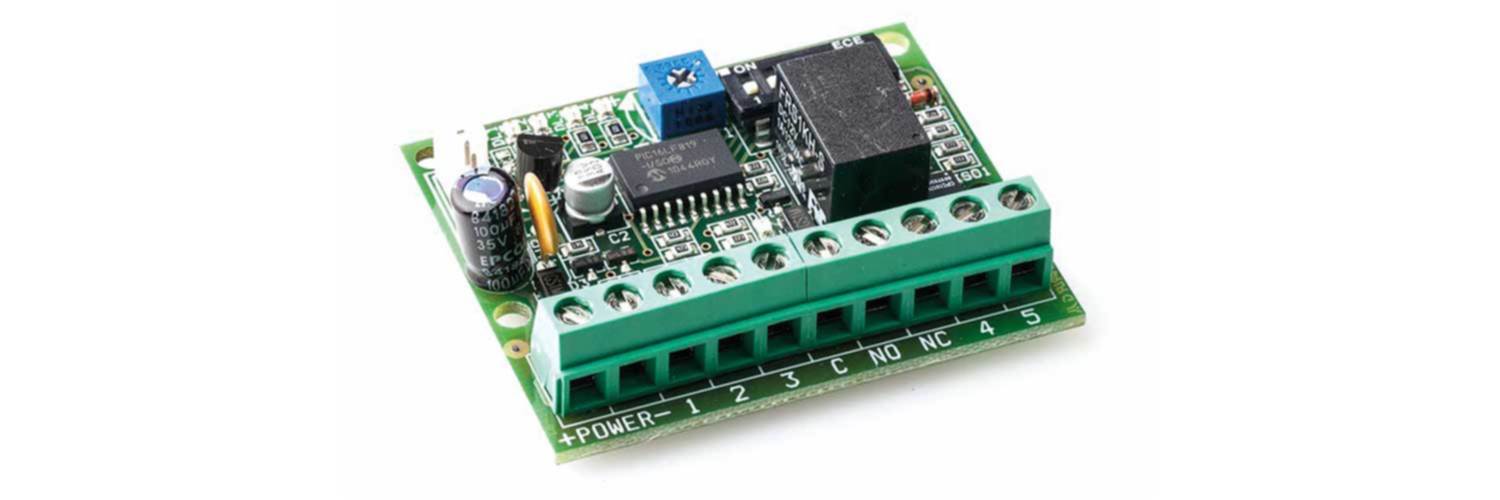

MCV MULTI-FUNCTION BOARD

mcv

Multi-function circuit for rolling-shutter contacts and magnetic contacts (up to 4 totally) – a 1 A relay output – an opto-isolated output.
