Optical – acoustic signalers

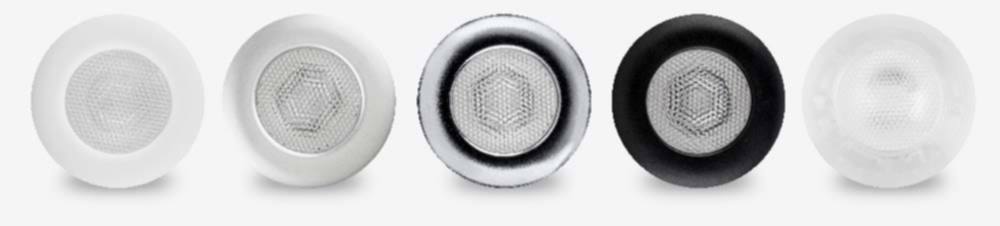

RLI 3-30V

Steady-light repeater for flush installation (red LED standard) – power supply from 3 – 30 Vdc – consumption: 10 mA

Also available with coloured LEDs (white, green, blue and yellow).

.

.

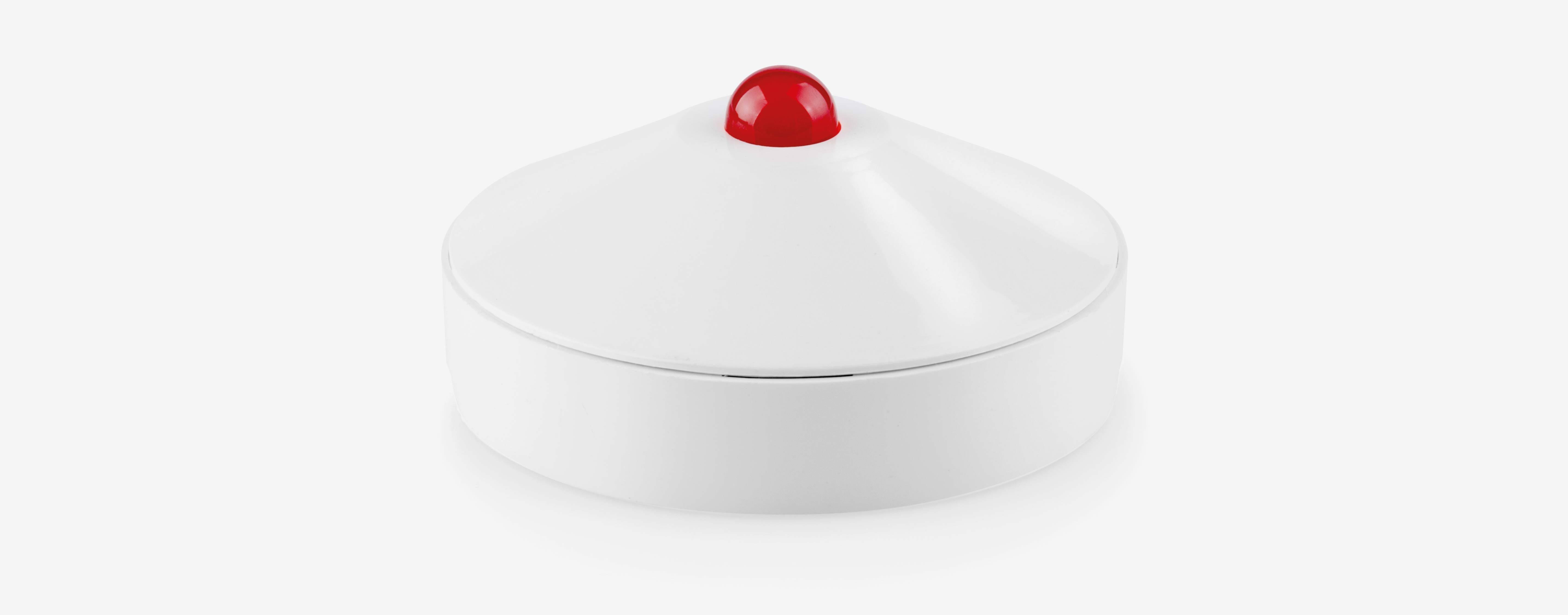

RL3V-12/24V

3 Vdc or 12/24 Vdc steady-light repeater.

.

.

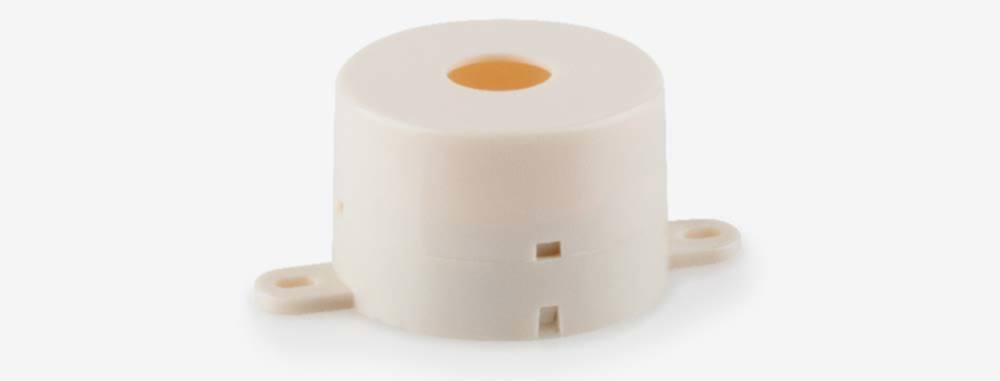

BZ 96

Piezoelectric buzzer – power supply 3-24 Vdc – consumption 13 mA – sound power 96 dB (A) at 1 m.

.

.

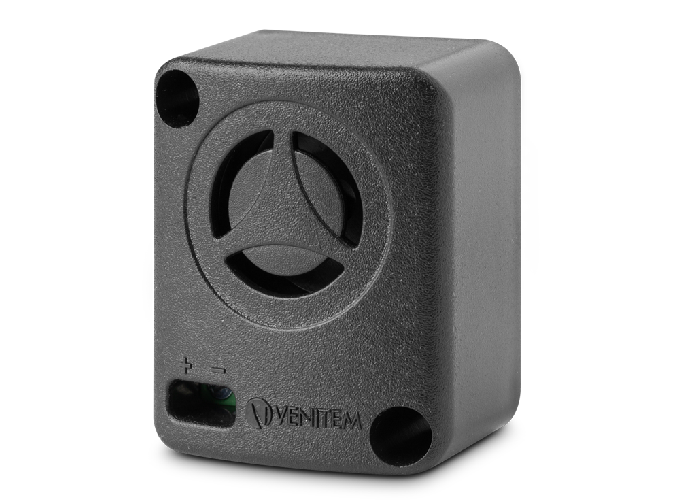

BZ 100

High-power buzzer – power supply 9-15 Vdc – consumption 130 mA MAX – sound power 108 dB (A) at 30 cm.

.

.

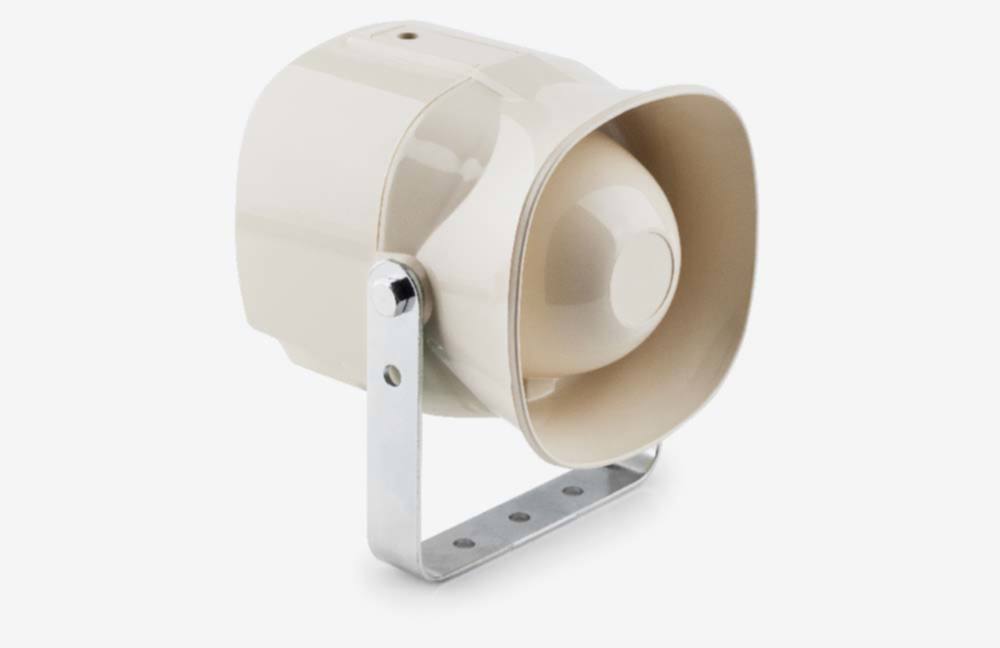

TR 400

High-power magneto-dynamic horn, suitable for very noisy industrial locations. Modulated sound frequency, polarity-reversal protection, electronic circuit tropicalized through resin immersion. Power supply 12 V – consumption 800 mA – sound power 118 dB (A) a 1 m – sound frequency 2400 Hz modulated – fixing clamp included.

.

.

.

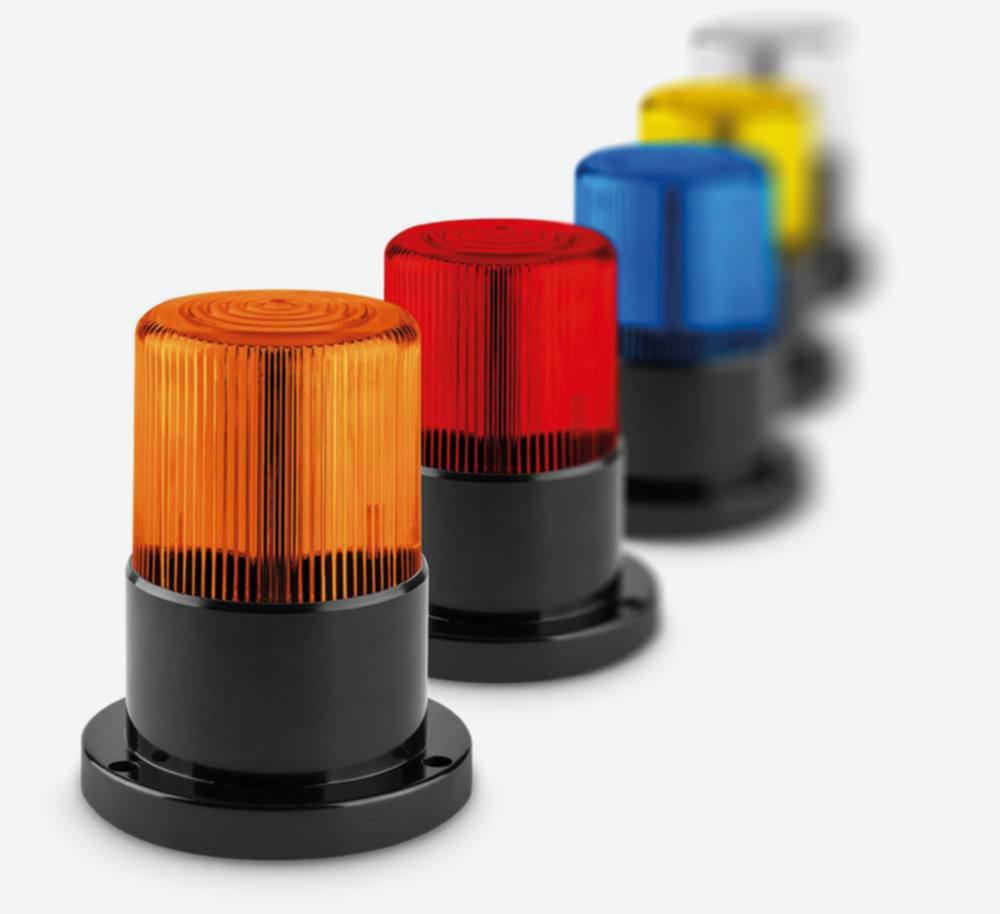

FL100 LED

LED flashing light with adjustable blinks from 50 to 100 per minute – power supply 10 – 30 Vdc – base in ABS and lens in VEDRIL – electronic circuit protected through resin immersion and against polarity reversal. IP 54 protection.
